| Manufacturer Part Number | ID-1611RL |

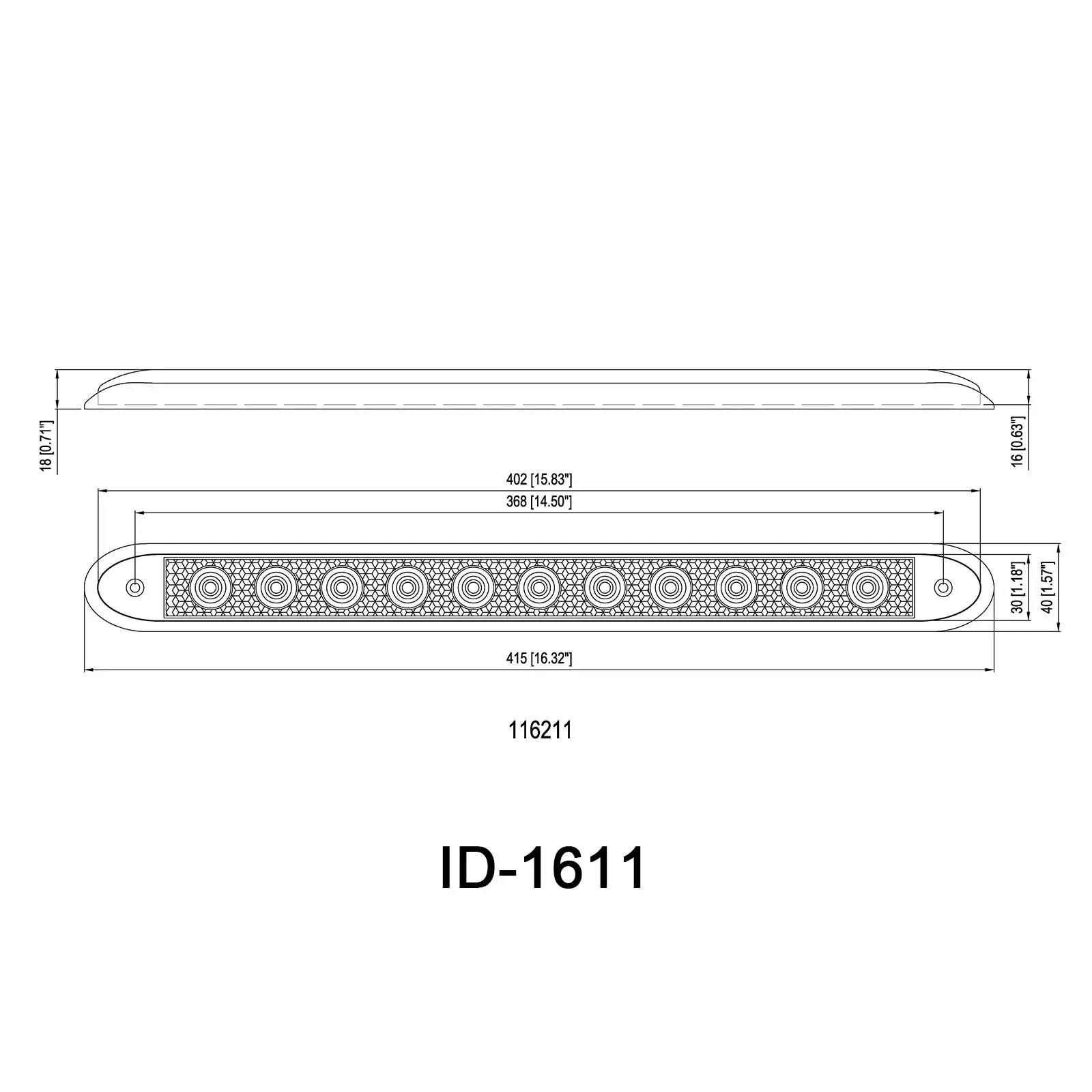

| Item Dimensions | 15.83 x 1.18 x 0.63 inches |
| Item Weight | 4.93 ounces |
| Amperage (mA) | 250 Milliamps |
| Light Source | (11) SMD 2835 LEDs |
| Lens Color | Red |
| LensMaterial | Polycarbonate |
| Brand | CONVEX |
| Functions | Identification Light |
| InputVoltage | 12-15 Volts |
| Mounting Type | Surface Mount |
| Applications | Truck, Trailer, RV, Speciality Vehicles |

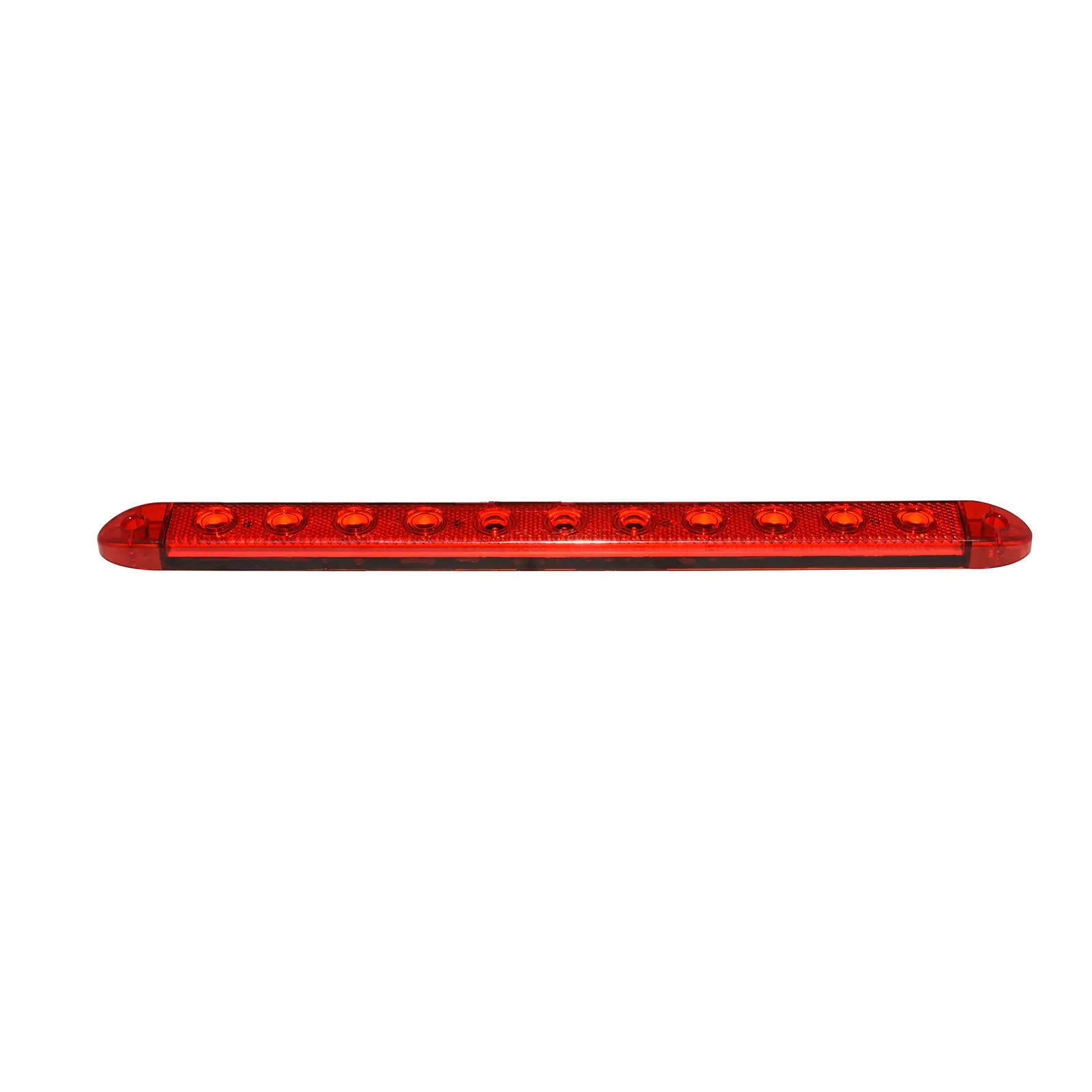

About this item
· Industry standard, interchangeable with most major brands.
· Innovative indicator light bar with reflex lens and fancy chromed trim bezel.
· Stop (brake) , Indicator (Tail) and Turn functions combined, ideal to use as an identification light bar as well as a high mount third brake light for trailers.

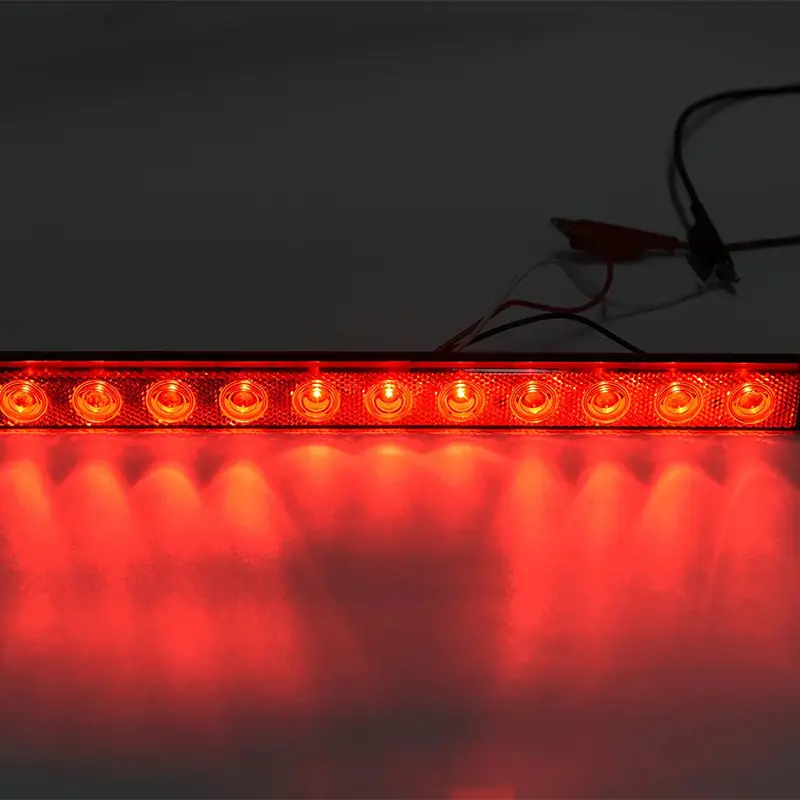

· 11 SMD LEDs, super-bright and long life span up to 50,000 hours.
· PC lens and housing, ultrasonically welded together to ensure a permanent and water proof seal.
· LEDs sealed by epoxy and circuit board coated with conformal coating for excellent moisture and environmental protection.
· Red color meets DOT FMVSS 108/SAE requirements for Stop, Tail and Indicator functions.
· Rated for 12V, tested to 13.8V.
· Also available in multi-voltage 10~30V operating range, or 24V by special order only.
Product information
Size:Single | Color:Red Lens
Technical Details
| Manufacturer | CONVEX |
| Brand | CONVEX |
| Item Model Number | ID-1611RL |
| Item Weight | 4.93 ounces |
| Product Dimensions | 15.83 x 1.18 x 0.63 inches |
| Is Discontinued By Manufacturer | No |
| Manufacturer Part Number | ID-1611RL |
| Position | Rear |
| Bulb Type | LED |
| Safety Rating | DOT SAE Compliant |
| Special Features | Weatherproof, IP65 |
| Vehicle Service Type | Truck, Trailer, RV, Speciality Vehicles |
| Wattage | 3.5W |
