CL-4803A Rectangular Surface Mount LED Marker Clearance Light with Reflex - 4 Pieces per Pack
- Overview
- Inquiry
- Related Products
| Manufacturer Part Number | CL-4803A |

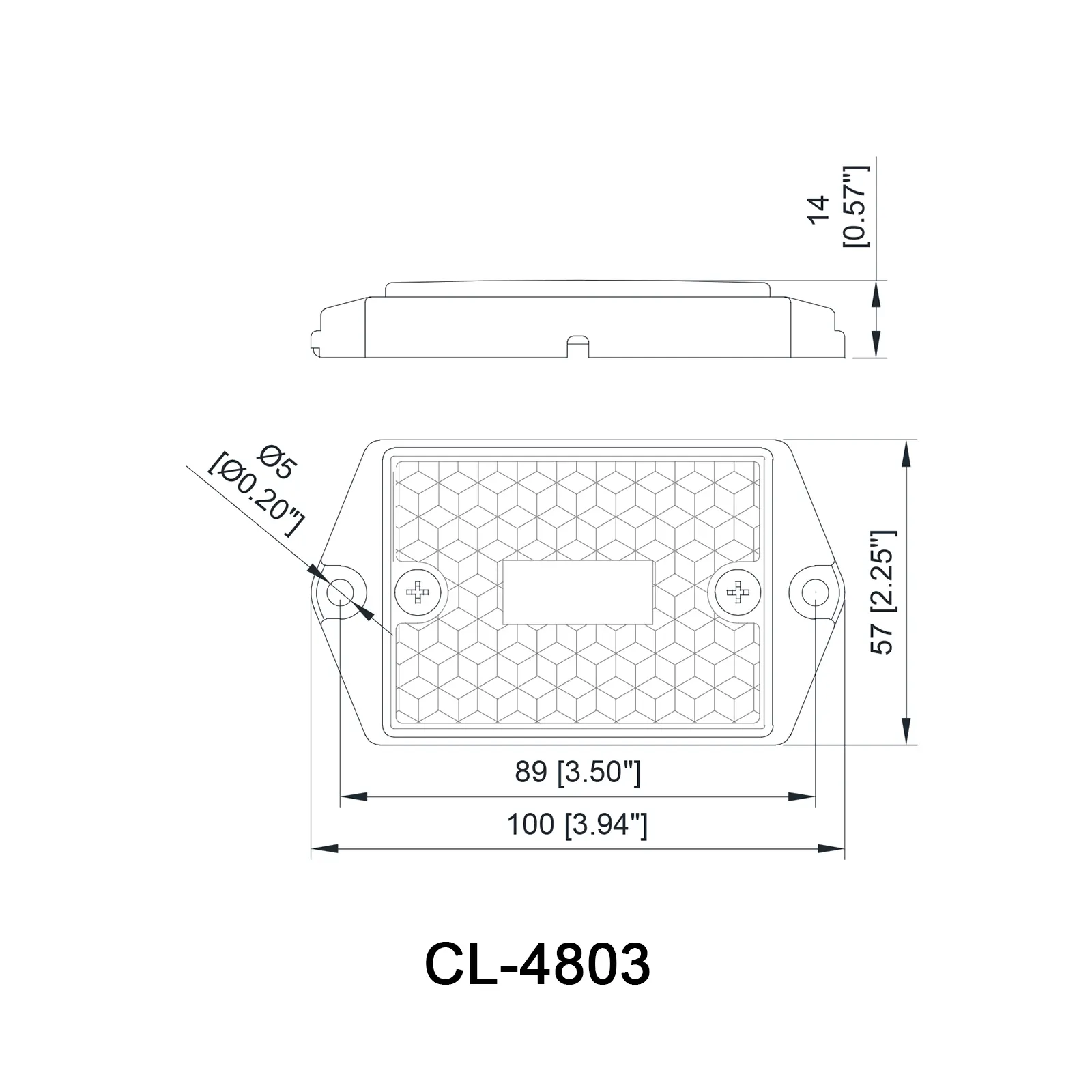

| Item Dimensions | 3.94 x 2.25 x 0.57 inches |
| Item Weight | 1.55 ounces |
| Amperage (mA) | 40 Milliamps |

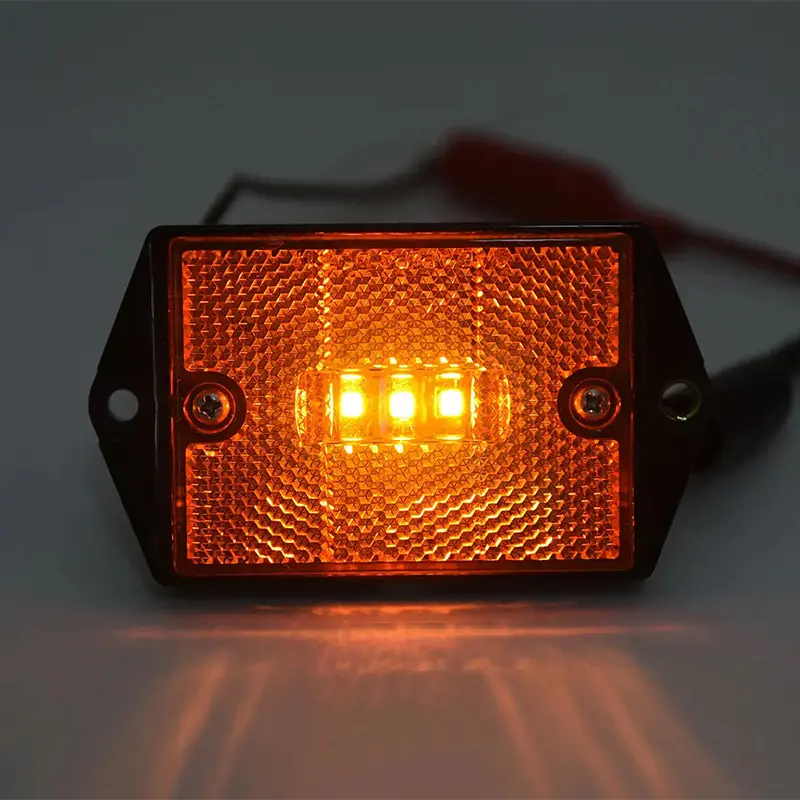

| Light Source | (3) SMD 2835 LEDs |
| Lens Color | Amber |
| LensMaterial | Polycarbonate |
| Brand | CONVEX |
| Functions | Marker and Clearance Light |
| InputVoltage | 12-15 Volts |
| Mounting Type | Surface Mount |
| Applications | Truck, Trailer, RV, Speciality Vehicles |
About this item
· Industry standard, interchangeable with most major brands.
· (3) SMD LEDs of super bright and long life span up to 50,000 hours.
· Lens screwed on, replaceable. Lens with built-in reflex reflector.
· Surface mount black plastic base.
· Functions as side marker, clearance or identification light.
· Epoxy potted LED board to ensure a permanent and weather proof seal.

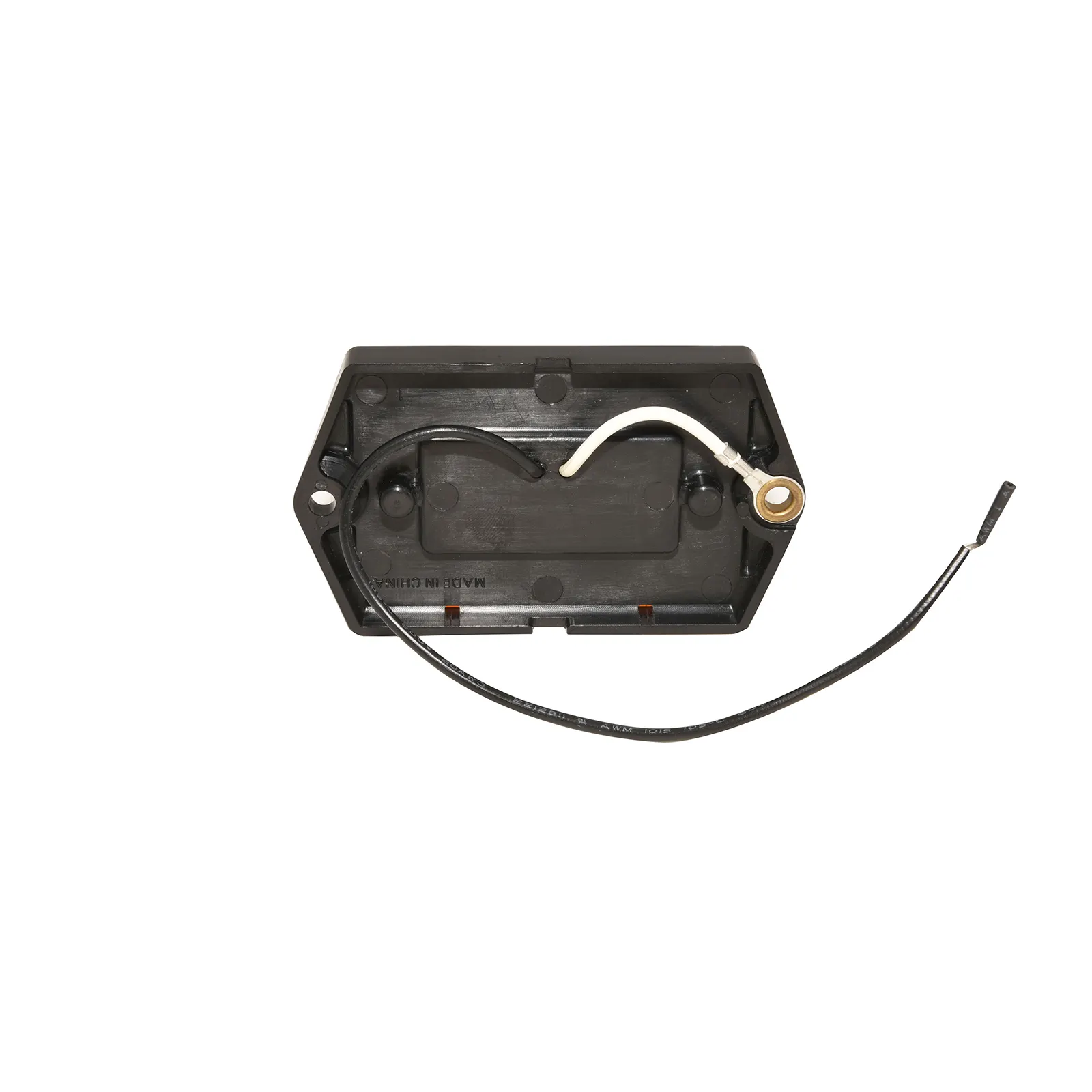

· Self grounding and a separate 6" (150mm) lead wire (optional .180 male bullet connector available)
· In compliance with DOT FMVSS 108/SAE, P2PC rated; lens marking: AP2PC.
· Rated for 12V, tested to 13.8V.
· Also available in multi-voltage 10~30V operating range, or 24V by special order only.
Product information
Size:Single | Color:Amber Lens
Technical Details
| Manufacturer | CONVEX |
| Brand | CONVEX |
| Item Model Number | CL-4803A |
| Item Weight | 1.55 ounces |
| Product Dimensions | 3.94 x 2.25 x 0.57 inches |
| Is Discontinued By Manufacturer | No |
| Manufacturer Part Number | CL-4803A |
| Position | Rear |
| Bulb Type | LED |
| Safety Rating | DOT SAE Compliant |
| Special Features | Weatherproof, IP65 |
| Vehicle Service Type | Truck, Trailer, RV, Speciality Vehicles |
| Wattage | 0.6W |
