| Manufacturer Part Number | ID-3223R |
| Item Dimensions | 15.03 x 1.22 x 0.94 inches |
| Item Weight | 3.70 ounces |
| Amperage (mA) | 40 Milliamps |
| Light Source | (9) SMD 2835 LEDs |
| Lens Color | Red |
| LensMaterial | Polycarbonate |
| Brand | CONVEX |
| Functions | Identification Light |
| InputVoltage | 12-15 Volts |
| Mounting Type | Surface Mount |
| Applications | Truck, Trailer, RV, Speciality Vehicles |
About this item
· Industry standard, interchangeable with most major brands.

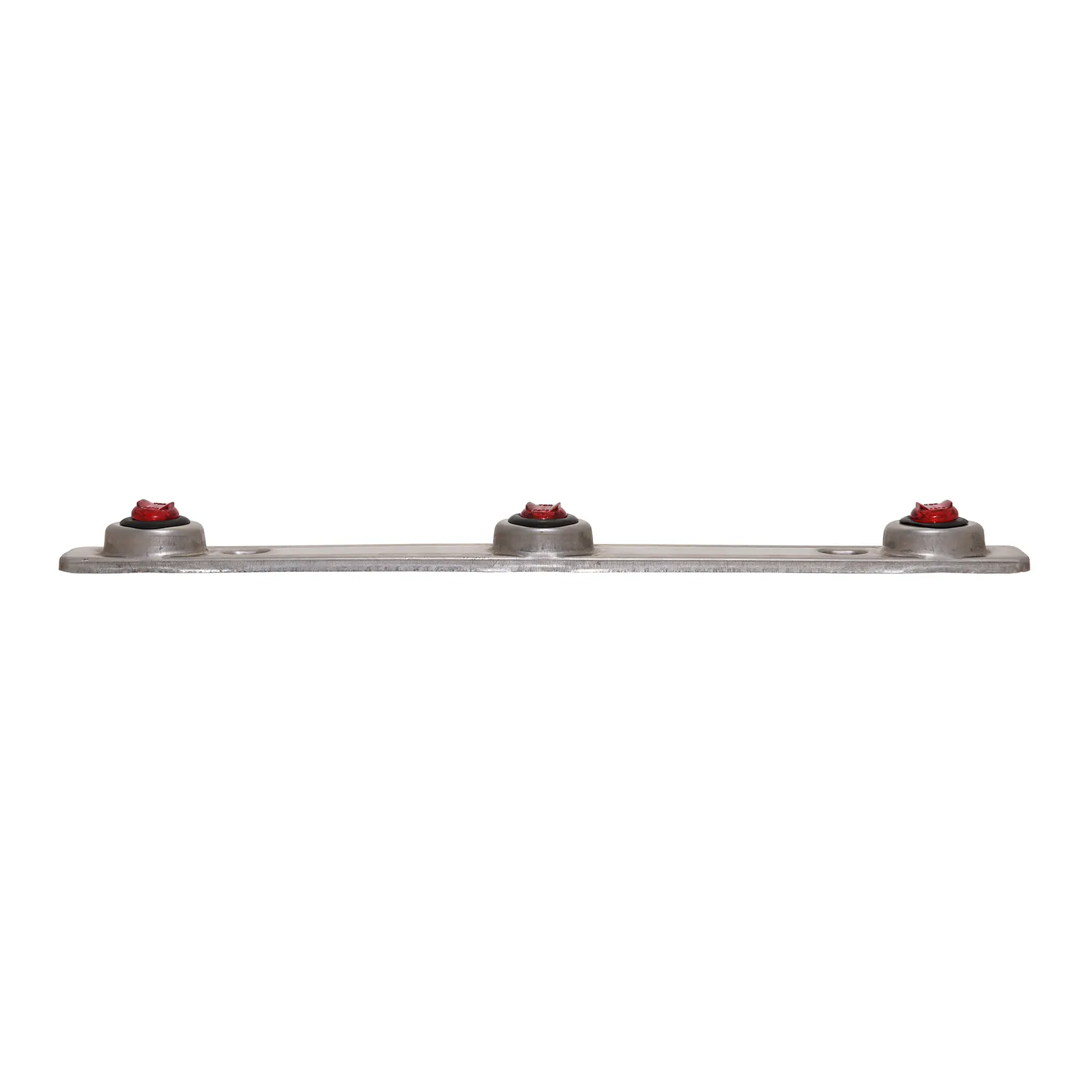

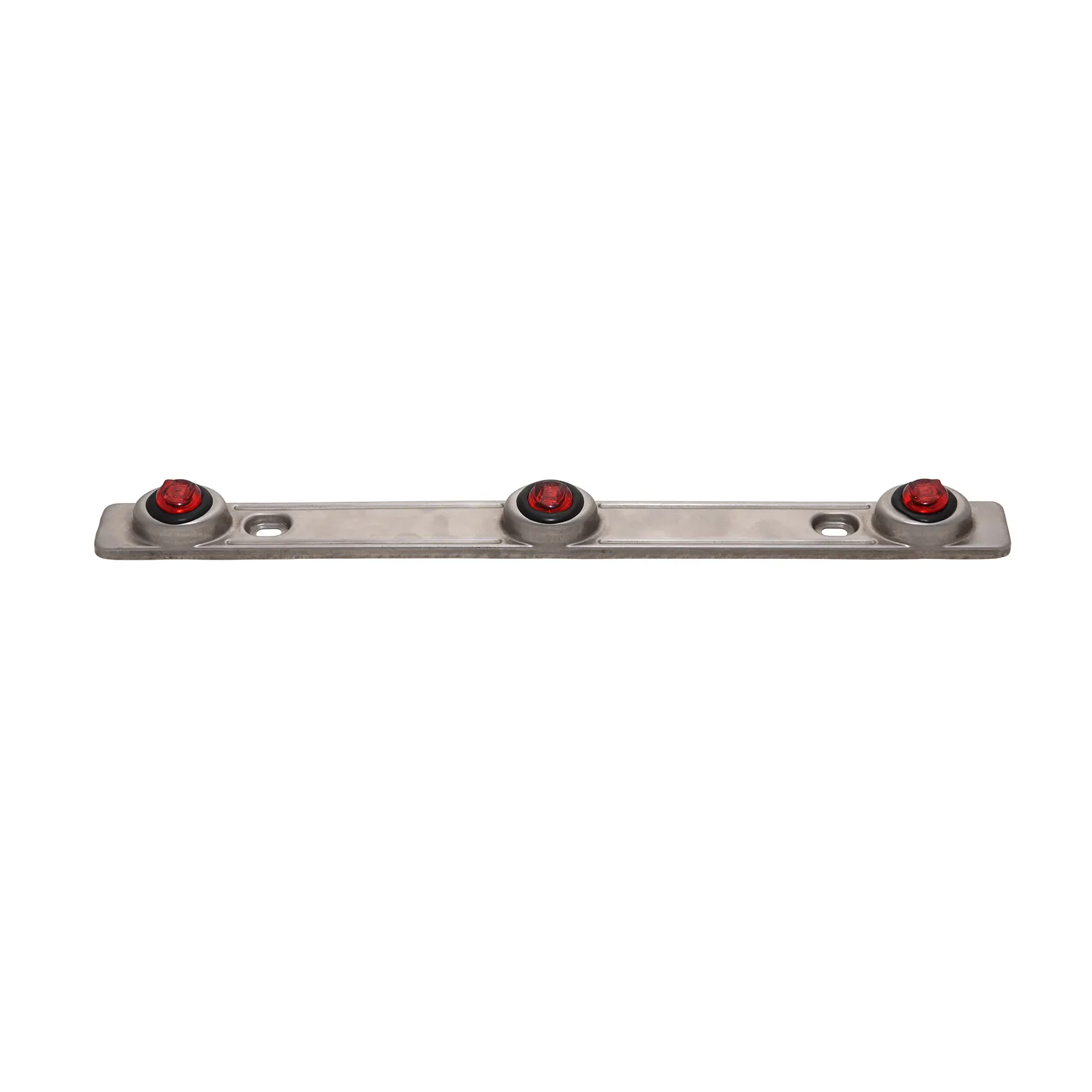

· Innovatively designed ID Bar, consisting of 3 x 3/4" marker lamps #113001R and shiny stainless steel base. Lamps are snapped in and locked in place on the base.
· Stamped 304 Stainless Steel Base available in highly polished finish and dull finish.

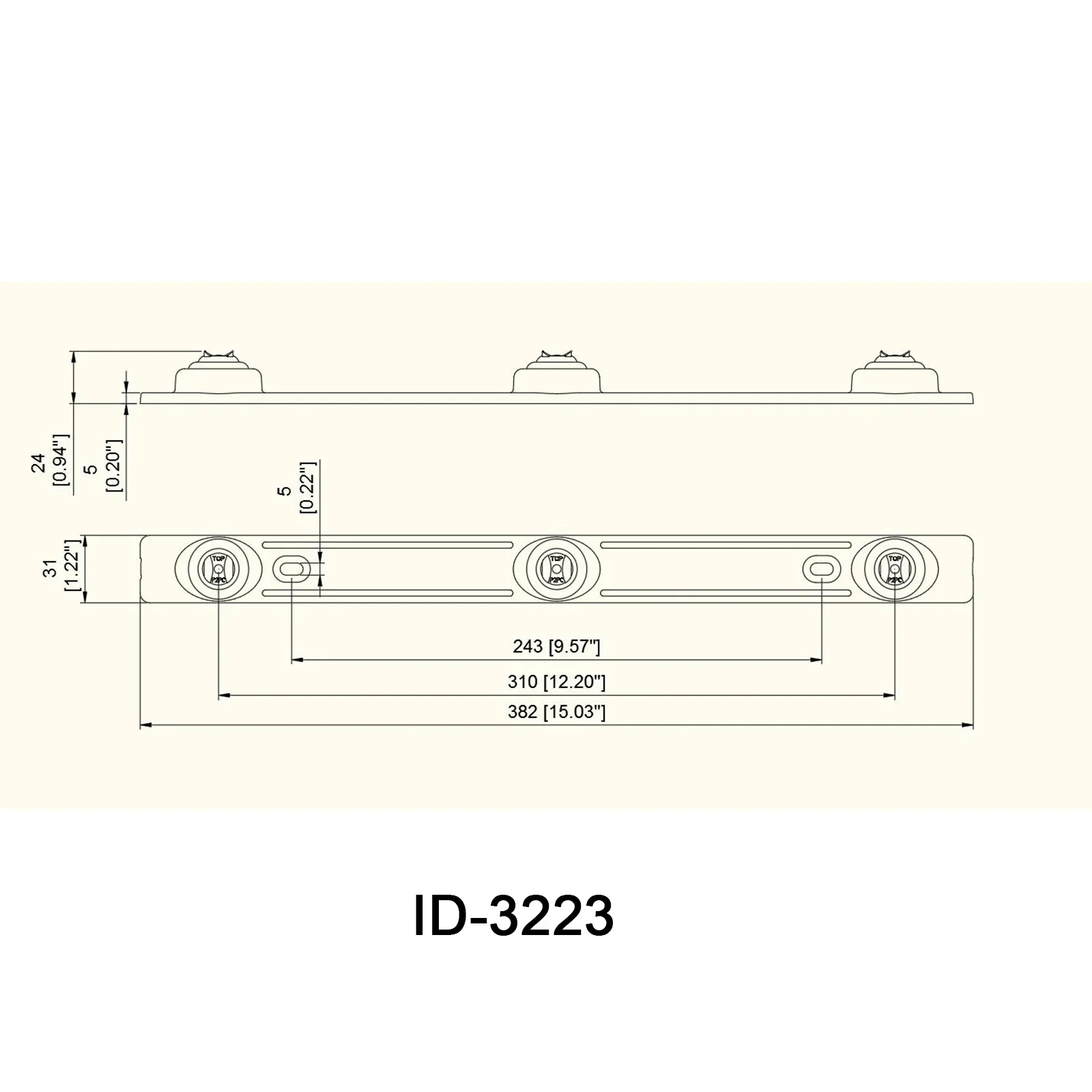

· Surface mount on holes of 9.6" (243mm) centers.

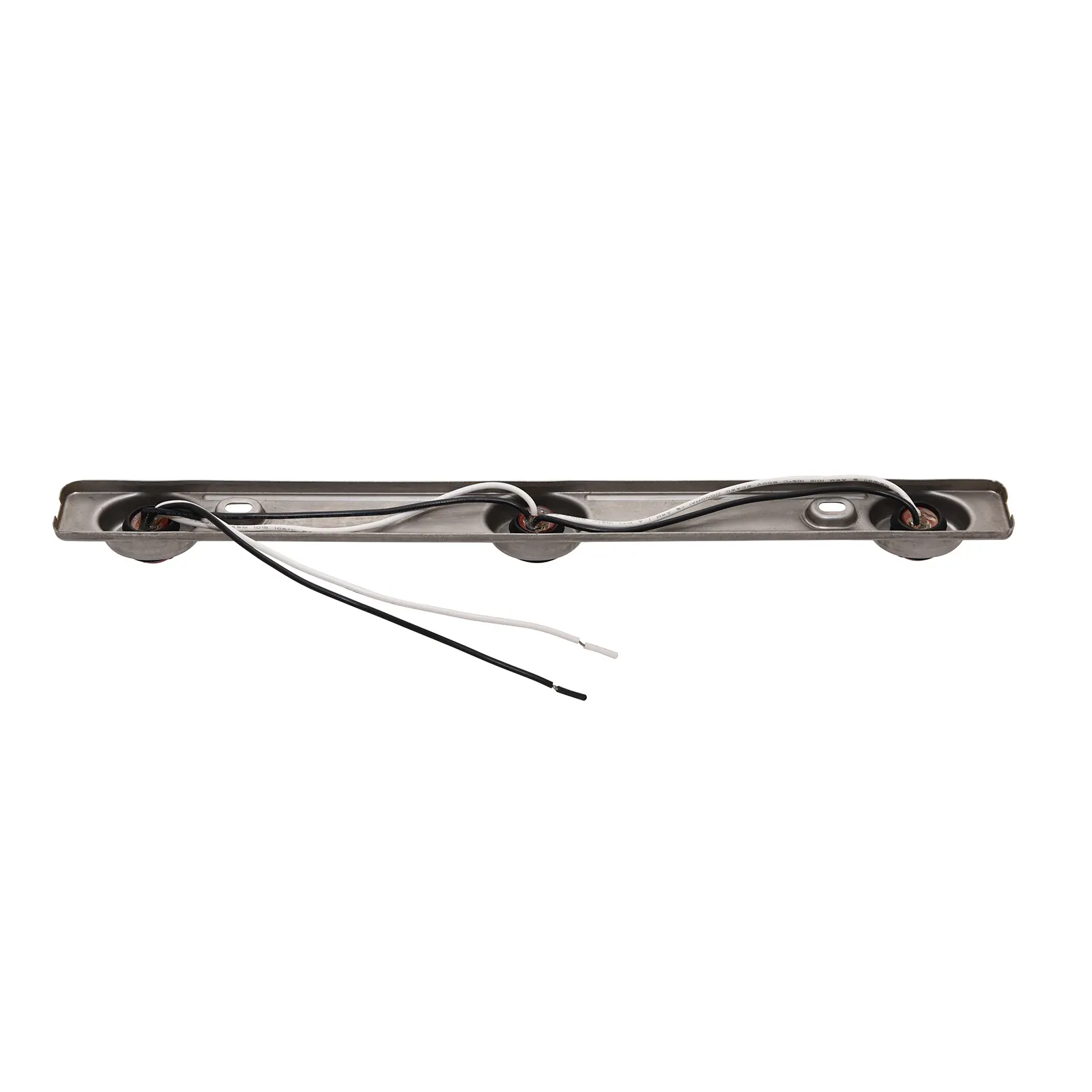

· Stripped lead wires directly coming out underneath the base.
· Meets DOT FMVSS 108/SAE requirements.
· Rated for 12V, tested to 13.8V.
· Also available in multi-voltage 10~30V operating range, or 24V by special order only.
Product information
Size:Single | Color:Red Lens
Technical Details
| Manufacturer | CONVEX |
| Brand | CONVEX |
| Item Model Number | ID-3223R |
| Item Weight | 3.70 ounces |
| Product Dimensions | 15.03 x 1.22 x 0.94 inches |
| Is Discontinued By Manufacturer | No |
| Manufacturer Part Number | ID-3223R |
| Position | Rear |
| Bulb Type | LED |
| Safety Rating | DOT SAE Compliant |
| Special Features | Weatherproof, IP65 |
| Vehicle Service Type | Truck, Trailer, RV, Speciality Vehicles |
| Wattage | 3.5W |
