| Manufacturer Part Number | TL-6110R |
| Item Dimensions | 6.4 x 2.2 x 1.5 inches |
| Item Weight | 6.35 ounces |
| Amperage (mA) | 60/240 Milliamps |
| Light Source | (10) SMD 2835 LEDs |
| Lens Color | Red |
| LensMaterial | Polycarbonate |
| Brand | CONVEX |
| Functions | Tail Light, Stop/Tail/Turn |
| InputVoltage | 12-15 Volts |
| Mounting Type | Grommet Mount |
| Applications | Truck, Trailer, RV, Speciality Vehicles |
About this item
· Industry standard, interchangeable with most major brands.

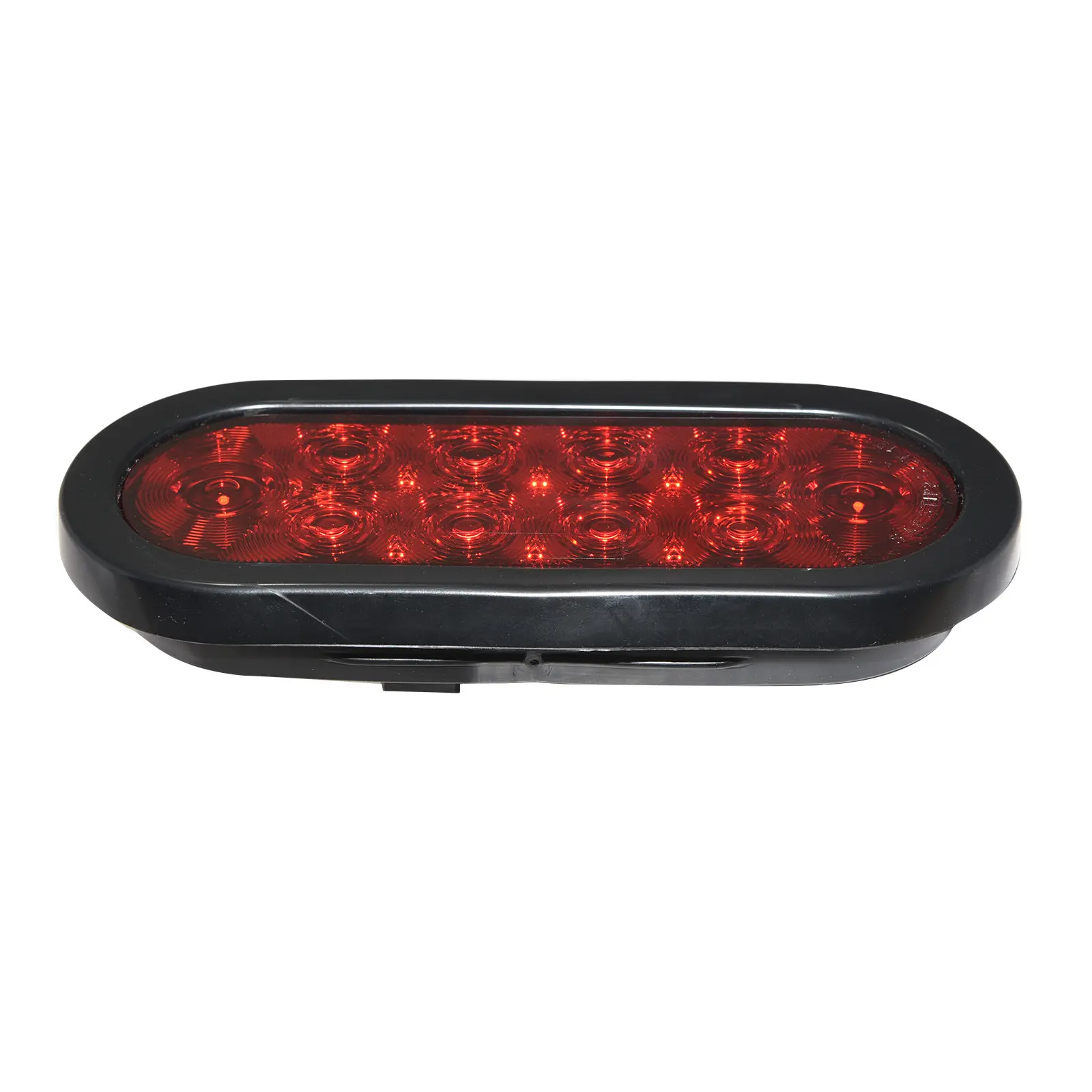

· Standard 6" Oval STT Light series, PVC grommet mount, interchangeable with most brands.

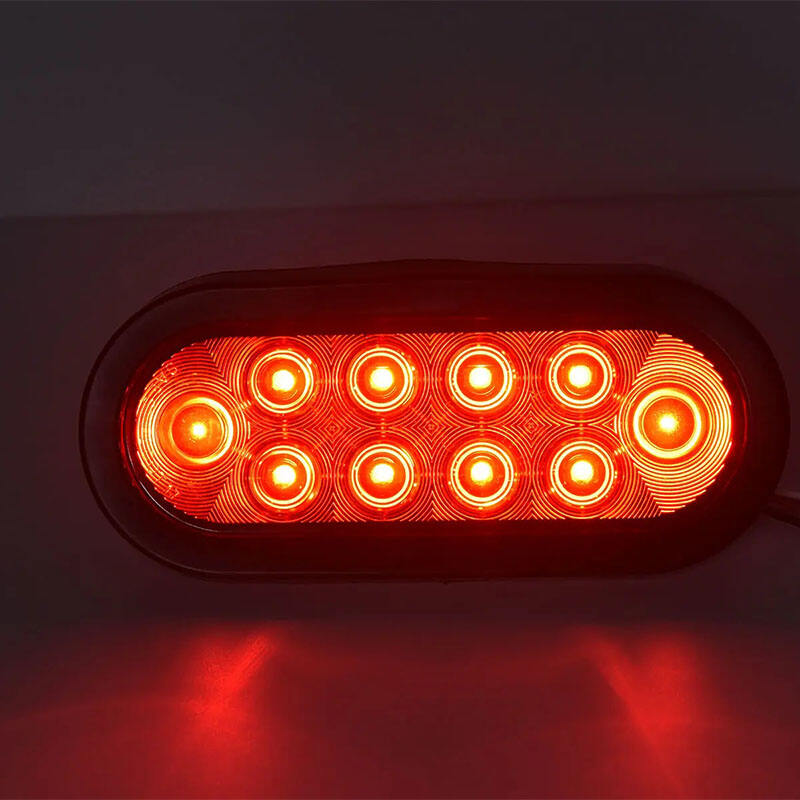

· New style of (10) SMD LEDs with engineered lens optics, superior grade LEDs and more economical version; also available in conventional version of (42) SMD LEDs; long life span up to 50,000 hours.
· Stop, Tail and Turn functions combined.
· PC lens and housing welded together to ensure a permanent and water proof seal

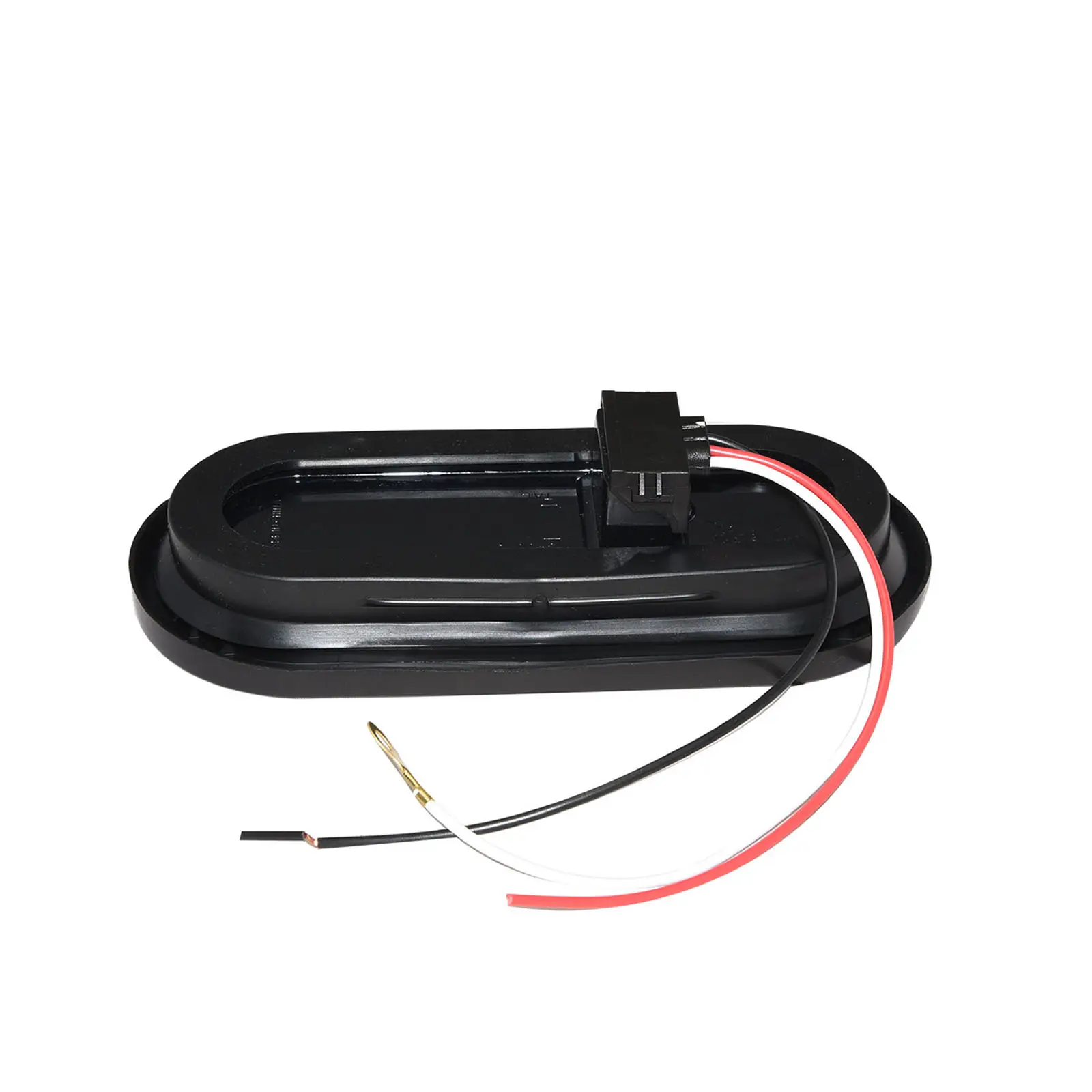

· Available in standard right angle 3-prong connector as well as 3-pin AMP connector.
· Meets DOT FMVSS 108/SAE requirements; Lens marking: STIP2.
· Rated for 12V, tested to 13.8V.
· Also available in multi-voltage 10~30V operating range, or 24V by special order only.
Product information
Size:Single | Color:Red Lens
Technical Details
| Manufacturer | CONVEX |
| Brand | CONVEX |
| Item Model Number | TL-6110R |
| Item Weight | 6.35 ounces |

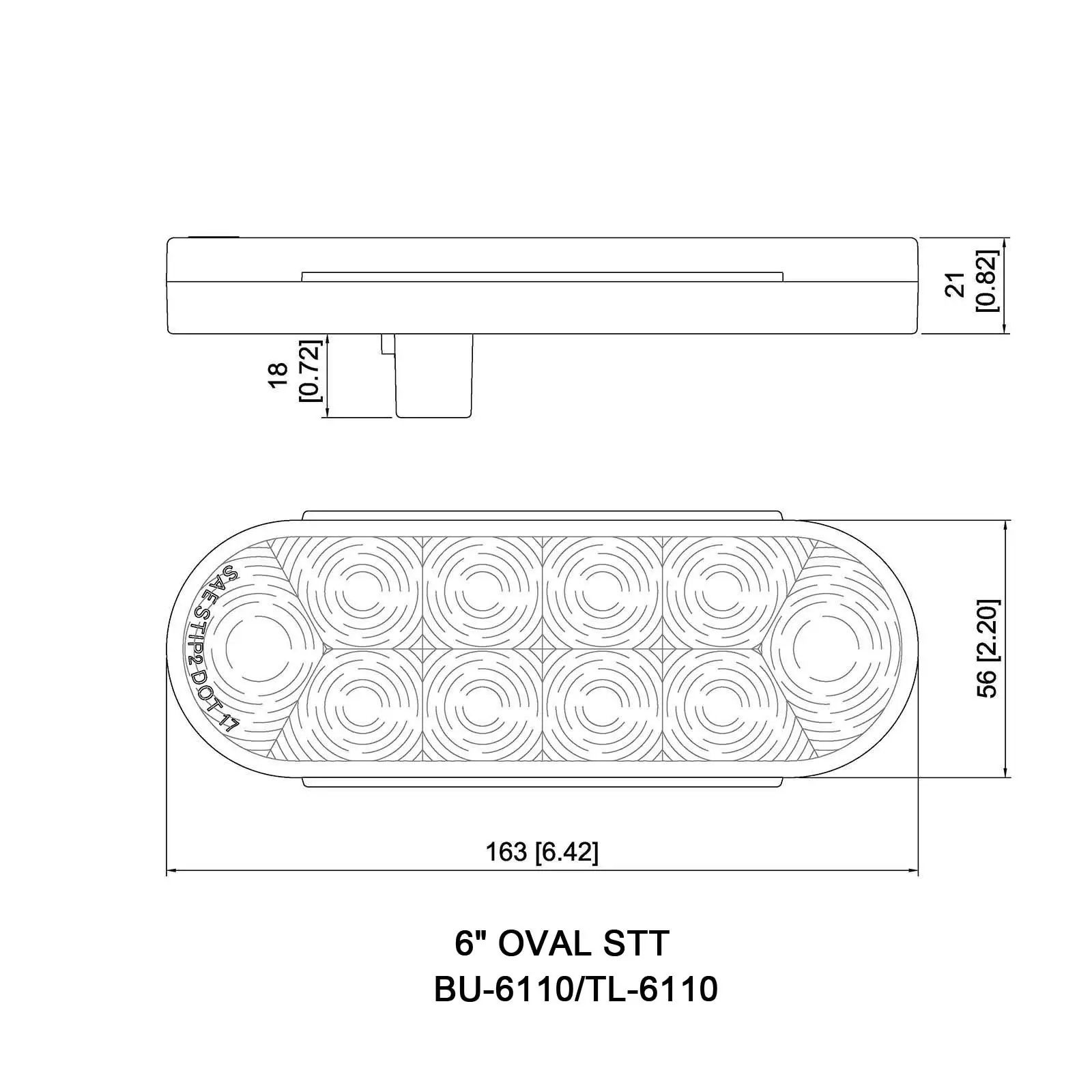

| Product Dimensions | 6.4 x 2.2 x 1.5 inches |

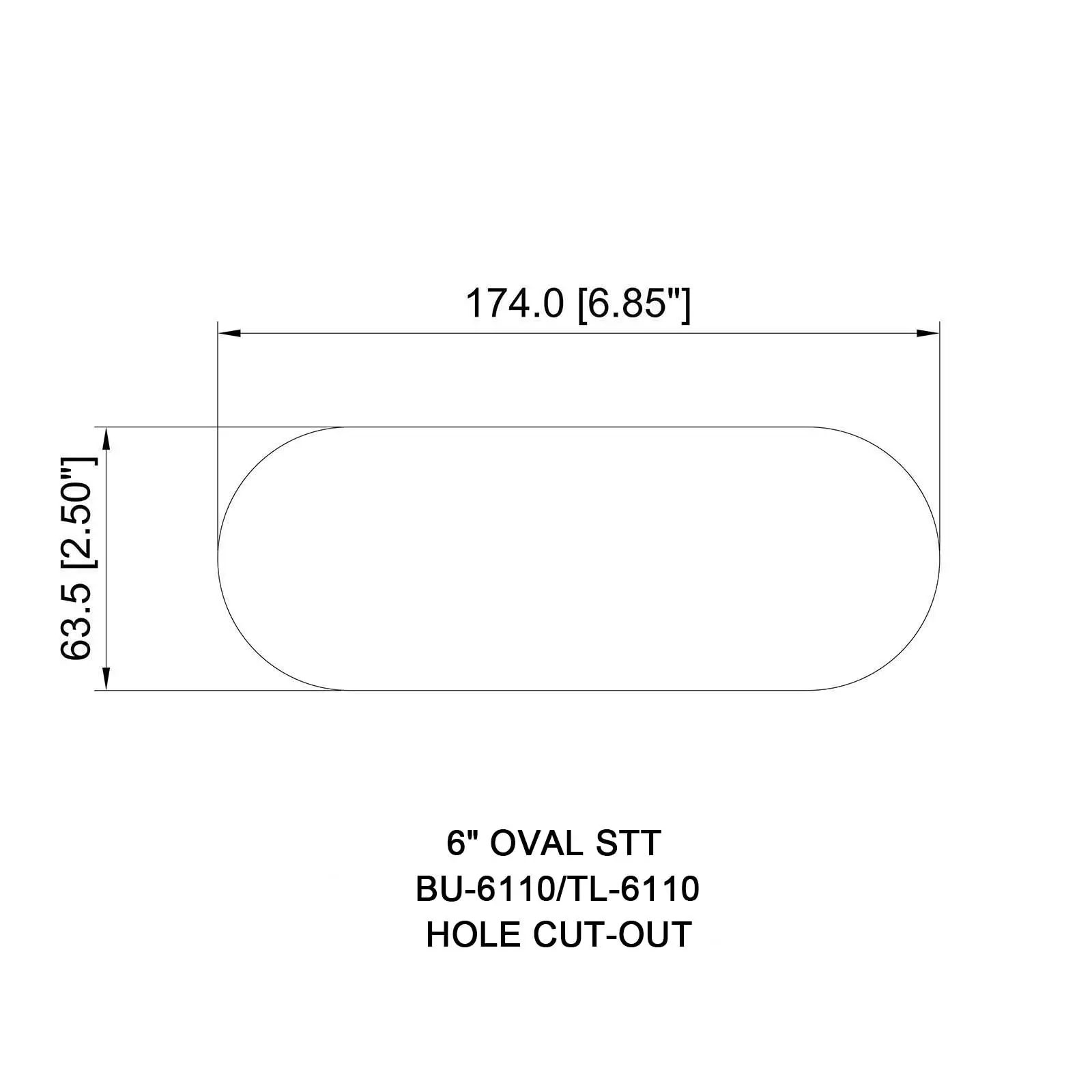

| Mounting Hole (Cut-out) Size | 6.85 x 2.5(R1.25) inches |
| Is Discontinued By Manufacturer | No |
| Manufacturer Part Number | TL-6110R |
| Position | Rear |
| Bulb Type | LED |
| Safety Rating | DOT SAE Compliant |
| Special Features | All weather proof |
| Vehicle Service Type | Truck, Trailer, RV, Speciality Vehicles |
| Wattage | 3.2W |
